Design equation:

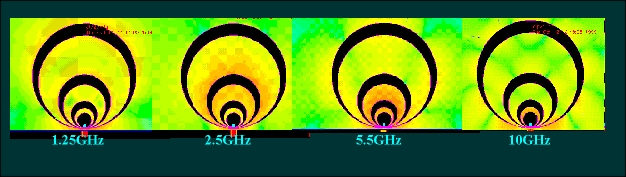

This is a novel multi-band
multiple circular ring monopole antenna. The outer loops have a size ratio
of 2 while the feed monopole is a disc, resulting in a quasi-log periodic
performance. This discretisation enables control of the radiation pattern,
which gives better results than the circular disc monopole at higher operating
frequencies. The antenna is an alternative to the fractal Sierpinski gasket
or Parany monopole antenna
Parany monopole antenna is a patent pending configuration from (FRACTUS) by C. Puente
