There are lot of research into enabling multiple services within a single communication terminal unit (e.g. PDA). The PIFA which can be implemented in a small space, is an attractive design approach for mobile units. The ability to incorporate dual band or multi-band performance further enhances the merit of these antennas for future application.

For further reading:

1. "Multiband Planar inverted F antenna", National URSI conference, York, March 1999
2. "Triple band planar inverted F antenna", IEEE AP-S International Symposium, 908-911, Orlando 1999.
3. "Multi-band planar inverted F antenna ", Electronics Letter Vol 36, No.3, pp1 , 2000



Dual feed tri-band PIFA

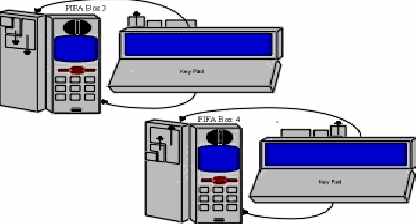

L-shape spur line loaded PIFA designed for mobile computing terminal (eg. Nokia 9110). The antenna is capable of dual polarisation to cater for GSM/DCS(Vertical) and WLAN(Horizontal) operation. The design is also able to general vertical polarisation in all three bands.

Back to top



Single feed tri-band PIFA

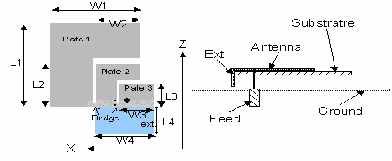

Triple band operation generated from two L-shape spur line with a single feed probe. Matching is achieved by external extention of metal plate.

Back to top



Triple band PIFA







A triple band antenna design for GSM, DECT and WLAN operation. Antenna uses 3 feed probes and is suitable for indoor picocell or handheld PDA applications.

Back to top



U and V Slot antenna





U-slot and V-slot antennas have excellent dual band and gain performance. When using degenerated modes, typical bandwidth is greater than 30%. A dual mode U-Slot antenna is also design where DCS and DECT bands are vertical pol. while WLAN is horizonal pol.

Back to top









Solution to undesirable radiation to human head

Perhaps the way to solve the problem of mobile phone radiation is to remove the human head

- conclusion in a presentation at AP2000
